Advanced Telephone PBX System CP432 (4 Landlines and 32 Output Extensions ) with a Keyphone ( as the Operator/Console Phone))

Product: Telephone Exchange / PBX / PABX

Model: CP432

( with 4 landlines + 32 internal extensions)

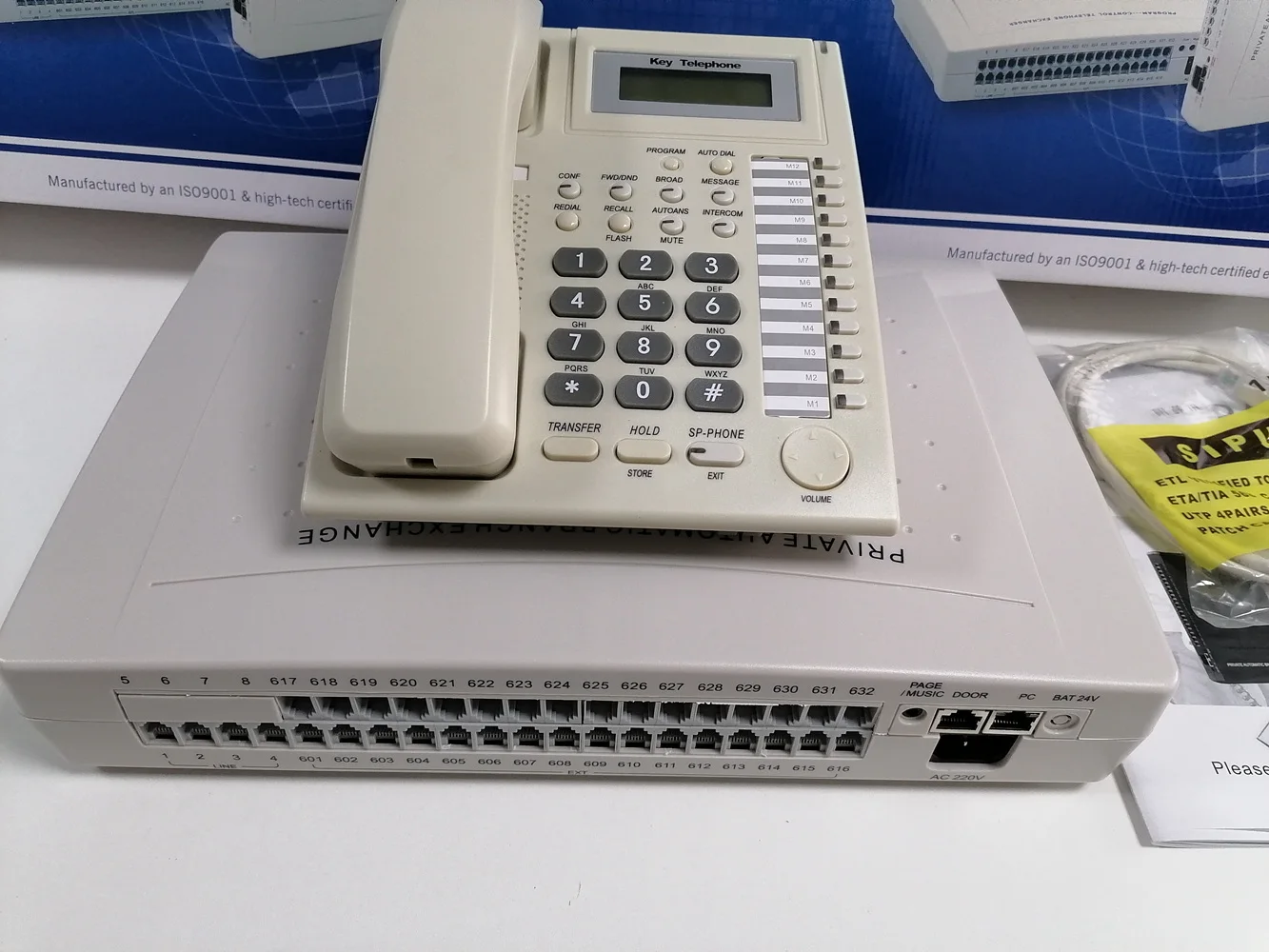

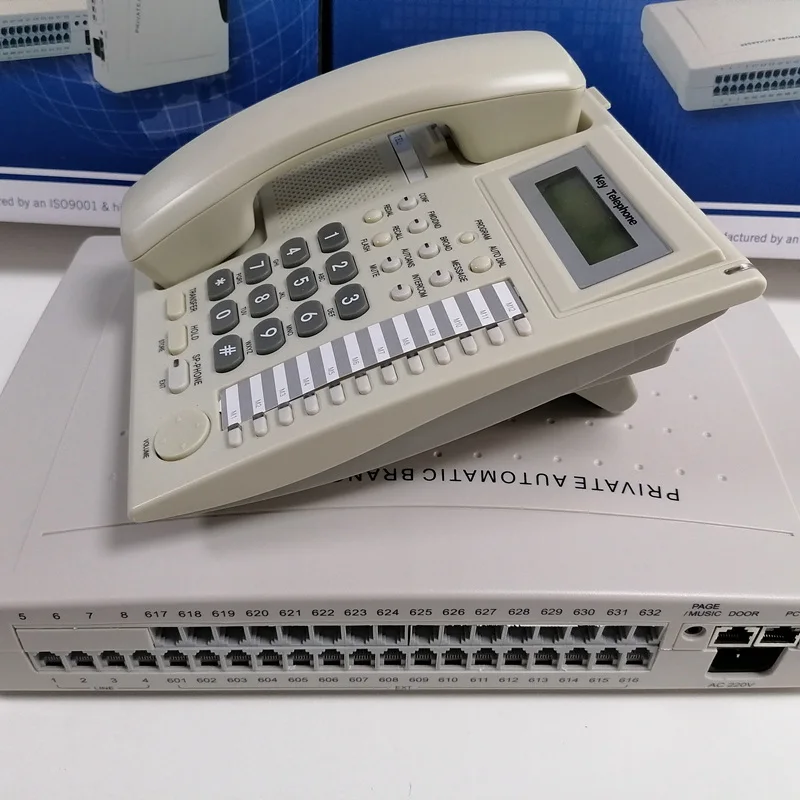

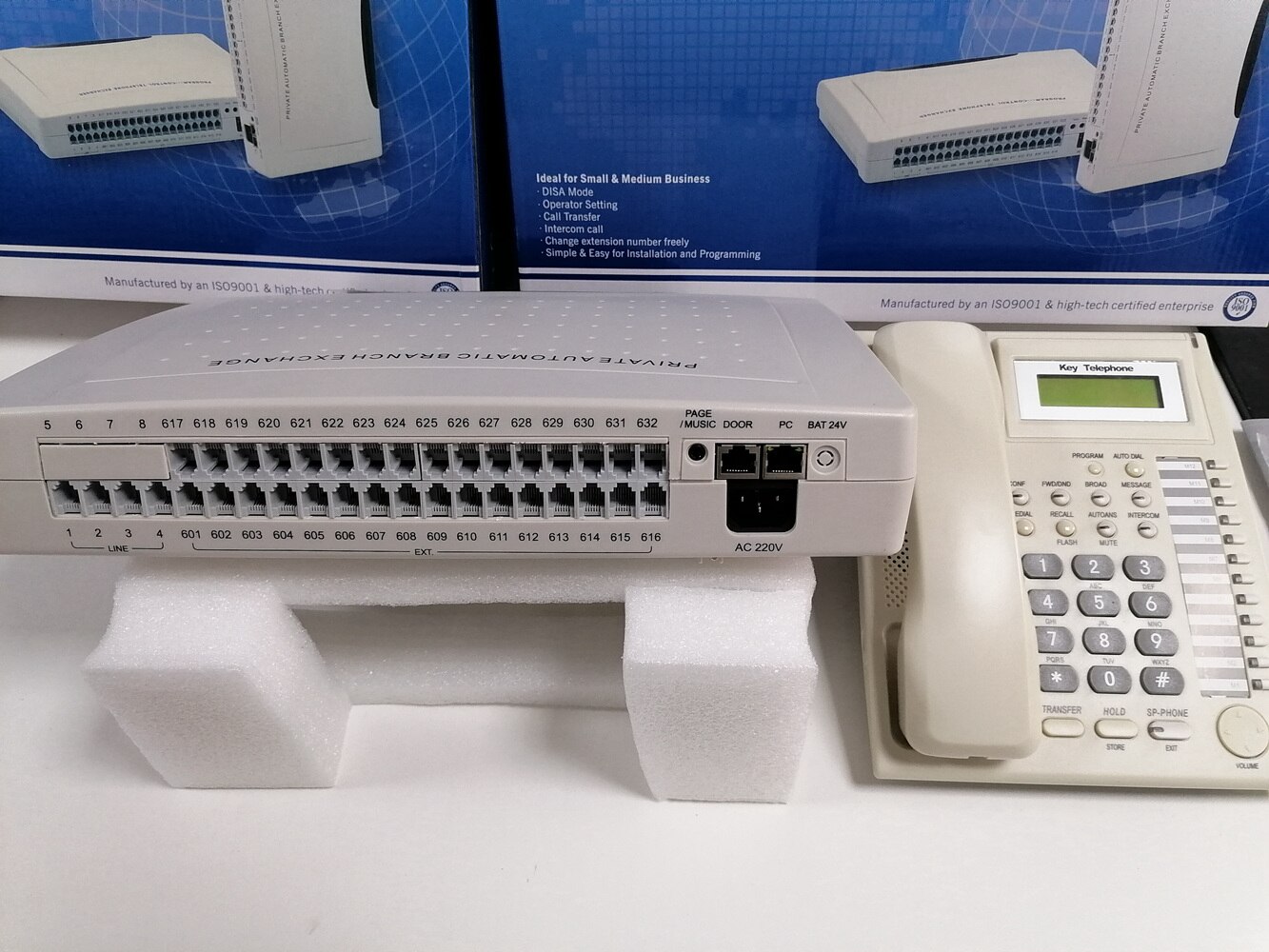

Notes: This link price includes 1 unit CP432 PABX and 1 unit KPH201 keyphone, as a complete kit, we will ship them together in one parcel.

CP432 is with more advanced features PBX system!!!

With PC management programming software!!!

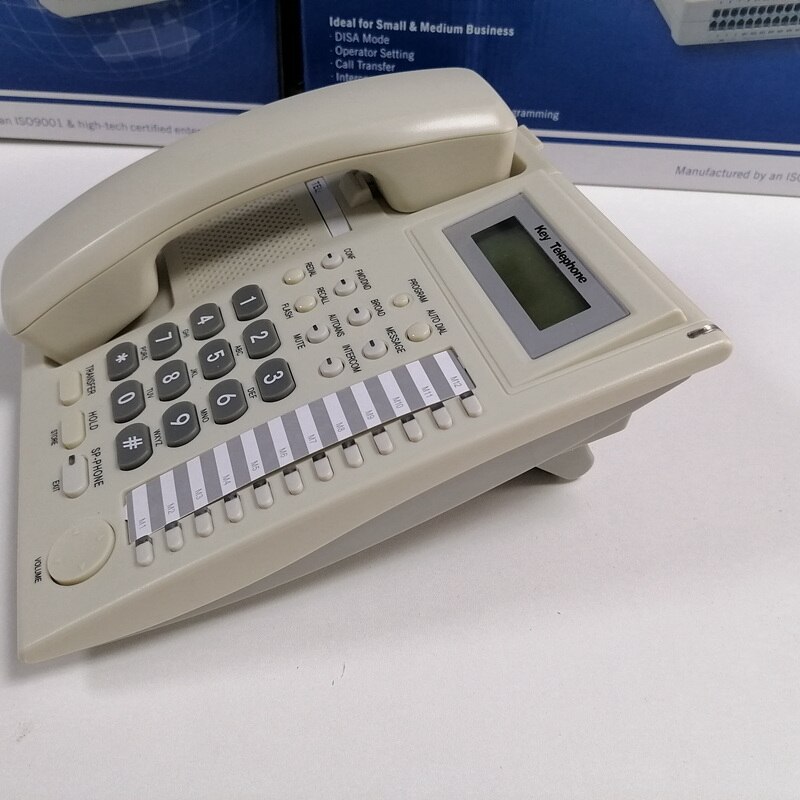

Support KPH201 Keyphone/Proprietary Phone

Support PC Billing Software for hotel

Support Ordinary Phone for programming

Support keyphone for programming

….

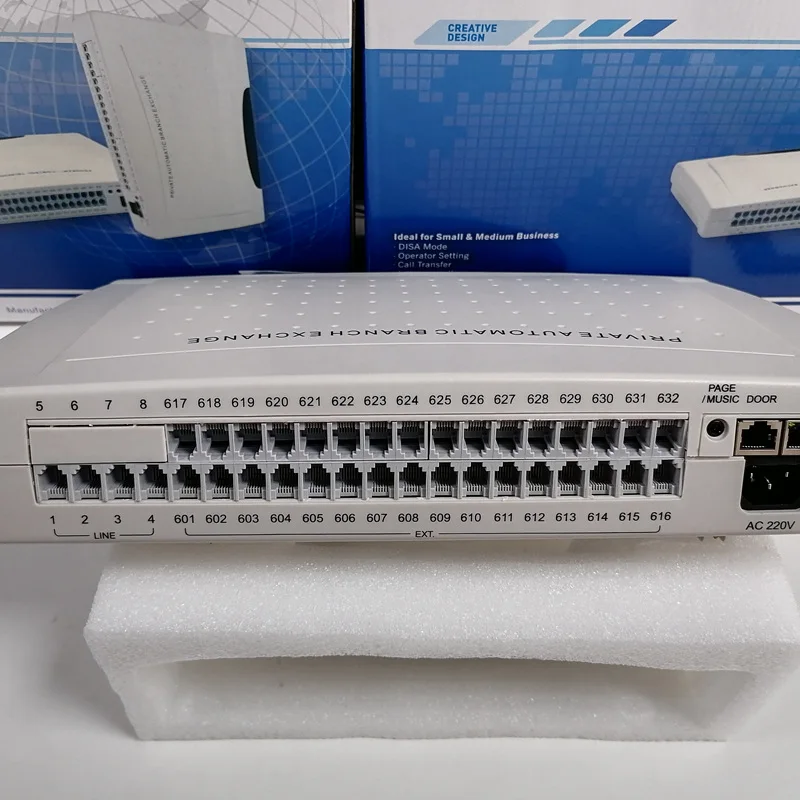

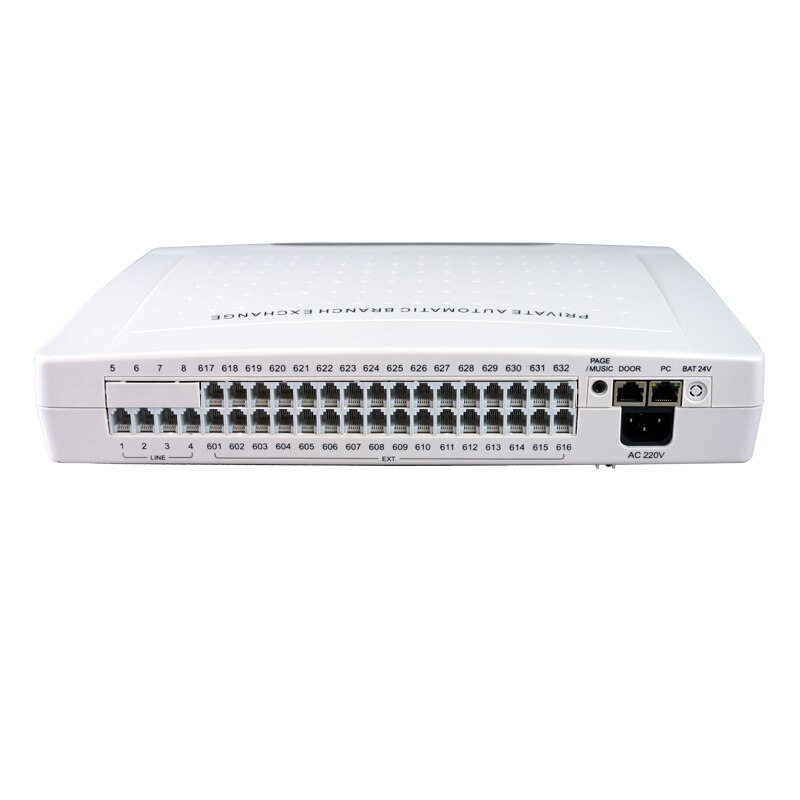

CP432 PABX

Automated Telephone System

This CP Series PBX System is very easy to install and use. It has all the standard features and it is compatible with your current analog phones. The PBX system is compatible with non-proprietary standard analog phones (proprietary phones cannot be used)

PABX model CP seires  is your ideal small or home office receptionist. It is features packed and comes with an easy to follow instruction CD/instruction booklet.The PBX works all over the world for any AC voltages between 85-240V AC.Both the common 110V(America)/220V(Europe) power are thus supported.

Main Features

1) 4 CO lines and 32 Extension lines

The CP series allows for smaller phone systems to grow even if the current system has less than 4 CO lines and 32 extension lines because it can still function normally without having all phone lines plugged in.

 2) 3 different outgoing message (OGM)

Any one of three OGM (user recordable greeting messages for (i) incoming calls, (ii) busy calls and (iii) calls with no answer) will be played according to the call status.

 3) Flexible Direct/indirect CO llineaccess:

CO lines can be accessed by dialing the phone number directly or indirectly by first dialing ‘9’. The PBX automatically allocates a free CO line for the user on a round robin basis or from CO Line 1 onwards. Additionally, a user can override the default PBX selection by picking a particular CO line for the outgoing call.

  4) Secretary assisted dialing

The secretary can dial an outside call from any extension and then transfer the call to another extension.

  5) Manual transfer of a CO line call to another CO line

Incoming calls can be transferred to an external phone number manually.

  6) Toll restriction scheme

Outgoing long-distance calls can be disabled on any extension by restricting the dialing of certain numbers.

  7) Password protected CO line calls

Outgoing calls and long-distance dialing can be restricted by the use of password.

  8) Time limited forced disconnect

All outgoing calls can be programmed to disconnect after a certain period of time (in minutes).

  9) CO line monitor: Any CO line call can be monitor.

 10) Caller id transfer

Caller id is also transferred when the incoming call is transferred.

  11) Automated attendant mode

The automated attendant will attend to an incoming call by playing an OGM greeting message to the caller and then transfer the call to the appropriate extension according to the caller’s input digits. If the called extension is busy or not answering, the appropriate OGM message will be played to inform the caller the status of the call.

  12)Operator mode

If incoming calls should be handled by an operator first, the incoming calls can be transferred automatically to a programmed extension with the attendant on duty/operator. Alternatively, the PBX can be programmed such that any incoming calls can ring all extensions with no "Do Not Disturb" turned on.

  13) Do not disturb

Extension with this feature turned on will not ring and the call will be transferred to another extension.

  14)Call hold or Call hold transfer

Incoming call can be put on hold or transferred from any extension without any limit even on misdials. Incoming caller listens to music during the on hold or the transfer.

  15) Secretary assisted transfer

The secretary can first talk to the person at the extension requested by the caller before transferring the call (to avoid taking unnecessary calls.The incoming call will be redirected back to the extension first made the transfer if the person at the requested extension does not answer. The caller listens to music on hold during the transfer.

  16) Transfer with no answer

The caller listens to music on hold during the transfer.

  17) Incoming call pick up

Incoming calls can be answered from any extension.

  18)Internal (intercom) calls

Intercom calls can be made between different extensions.

  19)Compatible with most communication equipment

The CP Series can be connected to telephones, fax machines, computers and other communication equipments requiring an analog phone line.

   20) Transfer if busy

All Incoming calls will be transferred to another extension when the requested extension is busy.

   21) CO line grouping

CO lines can be programmed to be answered by certain group of extensions.

   22) Three party conference call

Three party conferencing for both incoming calls and intercom calls.

  23) Incoming call alert

Persons at the engaged extensions will hear a special tone alerting them that there is an incoming call.

   24) External music on hold input

External music source can be used to override the built-in music on hold.

   25) Intercom call all extensions

Any extension can ring all extension at once.

  26) Password protected extension line

Access to individual extension can be protected with password.

   27) Power failure tolerant

During a power failure 4 extensions remain functional for both intercom and CO line calls.

EASY SETUP

You just connect the CP series to your telephone line, plug in the AC power, plug in your standard touch-tone telephone and the default
settings will allow you to use the system immediately. It’s that simple!Meanwhile, the PBX work with the analogue/regular/simple telephones!
